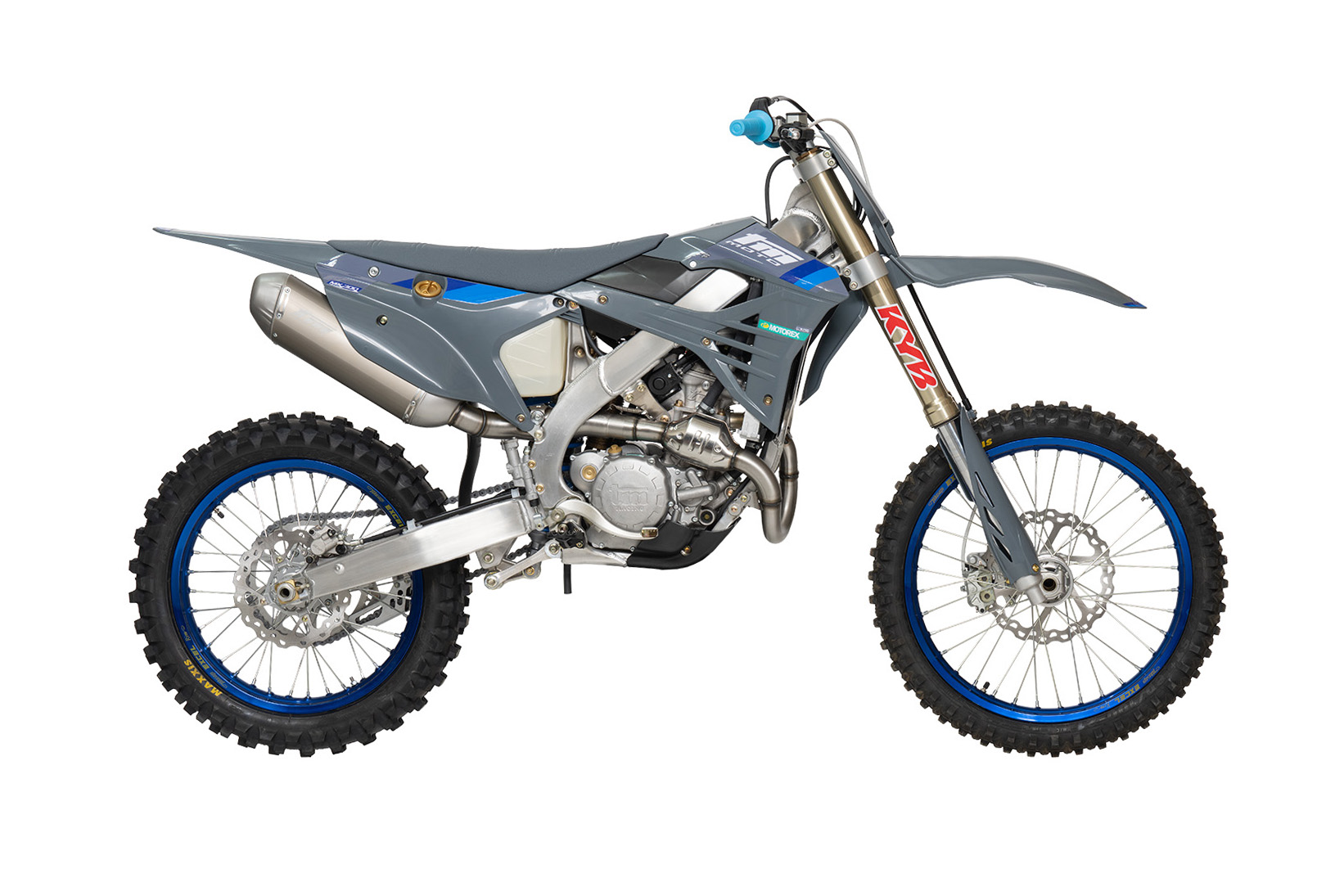

Like the 250, the TM MX 300 ES Fi 4T boasts a very important feature: perfect balance. With the fuel tank at the rear and the airbox at the front, this bike has ideal weight distribution. Other details worth noting are the highly refined chassis and the profound design renewal that has involved all 2025 models. The motorcycle images are for illustrative purposes only. Due to storage requirements, some parts may differ from those shown in the image.
Contact for Pricing.
CHANGE 5 gears
START-UP Electric
RACE 72 mm
BORE 72 mm
CLUTCH Multi-disc in oil bath
DISPLACEMENT 293.2 cm3
ECU eMoticom
THROTTLE BODY---
CARBURETOR Keihin
WEIGHT (WITHOUT PETROL) 95 kg
TANK CAPACITY (APPROX.) 9.0 Lt / 12 Lt
FRONT BRAKE DISC DIAMETER 270 mm
REAR BRAKE DISC DIAMETER 240 mm
FRONT BRAKE CALIPER Brembo
REAR BRAKE CALIPER Nissin
CHAIN Queen GPX
FRAME CONSTRUCTION Made of self-hardening aluminum, single-beam deltabox type, with extruded, forged and micro-cast parts
FRONT SUSPENSION Kayaba Ø 48 mm
MINIMUM HEIGHT FROM GROUND 36 cm
REAR SUSPENSION TM Racing
SADDLE HEIGHT FROM THE GROUND 98.5 cm
STEERING HEAD ANGLE 63°
FRONT EXCURSION 310 mm
REAR EXCURSION 300 mm
