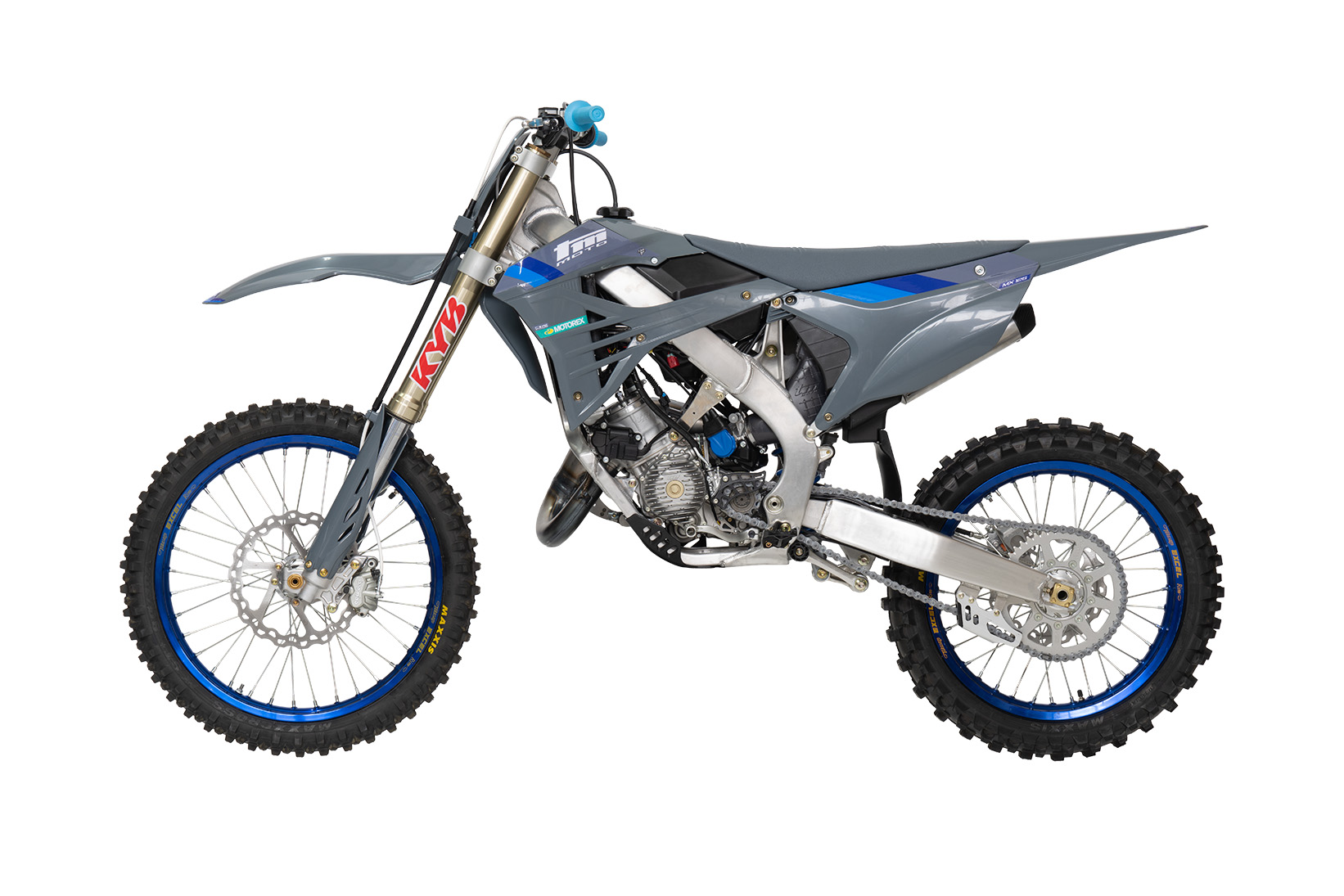

TM Moto's history began with this motorcycle, and has never stopped over the years. It has continued to design, evolve, and research to make the engine ever more powerful and the motorcycle, in general, ever more competitive. This is a true icon of our history, with which (and thanks to which) everything began. The motorcycle images are for illustrative purposes only. Due to storage requirements, some parts may differ from those shown in the image.
Contact for Pricing.
CHANGE 6 gears
START-UP Electric only
RACE 54.5 mm
BORE 54 mm
CLUTCH Multi-disc in oil bath
DISPLACEMENT 124.8 cm3
ECU eMoticom
THROTTLE BODY TM Moto
WEIGHT (WITHOUT PETROL) 91 kg
TANK CAPACITY (APPROX.) 9.0 Lt / 12 Lt
FRONT BRAKE DISC DIAMETER 270 mm
REAR BRAKE DISC DIAMETER 240 mm
FRONT BRAKE CALIPER Brembo
REAR BRAKE CALIPER Nissin
CHAIN Queen GPX
FRAME CONSTRUCTION Made of self-hardening aluminum, single-beam deltabox type, with extruded, forged and micro-cast parts
FRONT SUSPENSION Kayaba Ø 48 mm
MINIMUM HEIGHT FROM GROUND 36 cm
REAR SUSPENSION TM Racing
SADDLE HEIGHT FROM THE GROUND 99 cm
STEERING HEAD ANGLE 63°
FRONT EXCURSION 310 mm
REAR EXCURSION 300 mm
