Gearbox

Diagram

4T300FIEN25

Diagram
Position
1
F40240

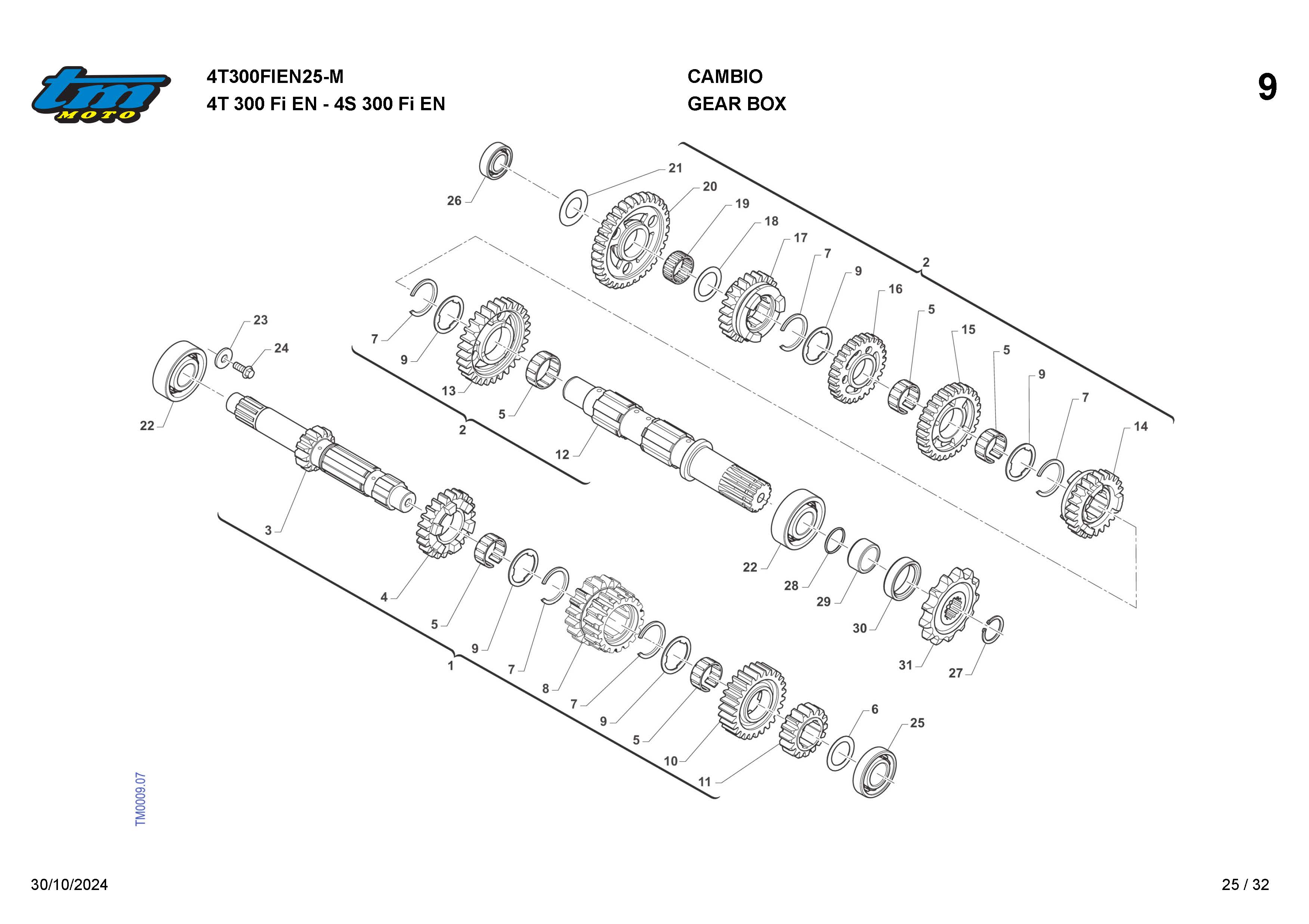

MAIN SHAFT 300Fi MX 23 4T (6 FINS) CPL
$
Recommended
Order Quantity:
1
Diagram
Position
10
F40219
GEAR 6A A.P. Z22 6 LUGS 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
11
F40216
2nd A.P. Z15 6-LUG GEAR 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
12
F40220
SECONDARY SHAFT 6 FINS 250/300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
13
F40222
GEAR 2nd A.S. Z27 6 FINS 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
14
F40226
GEAR 6th A.S. Z20 6 FINS 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
15
F40223
GEAR 3A A.S. Z24 6 LUGS 300 4T
$
53.1
Recommended
Order Quantity:
1
Diagram
Position
16
F40224
GEAR 4A A.S. Z23 6 FINS 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
17
F40225
GEAR 5th A.S. Z21 6 FINS 300 4T
$
56.58
Recommended
Order Quantity:
1
Diagram
Position
18
F48353
SPACER
$
0.32
Recommended
Order Quantity:
1
Diagram
Position
19
F19514
NEEDLE CAGE 18X22X10
$
8.74
Recommended
Order Quantity:
1
Diagram
Position
2
F40241
SECONDARY MAST 300Fi MX 23 4T (6 FINS) CPL
$
Recommended
Order Quantity:
1
Diagram
Position
20
F40221
GEAR 1st A.S. Z31 6 FINS 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
21
48012
SPACER, 26x17x0,5
$
1.37
Recommended
Order Quantity:
1
Diagram
Position
22
F03368
BUSH, 62/22 C3 22x50x14
$
16.78
Recommended
Order Quantity:
2
Diagram
Position
23
49603
WASHER 6x12
$
0.12
Recommended
Order Quantity:
1
Diagram
Position
24
49480
BOLT TCEI 6X10
$
0.65
Recommended
Order Quantity:
1
Diagram
Position
25
03254
BUSH, MAINSHAFT 2RS/C3 4S
$
12.8
Recommended
Order Quantity:
1
Diagram
Position
26
F03367
BUSH, 6003 TN9 C3 17x35x10
$
6.28
Recommended
Order Quantity:
1
Diagram
Position
27
49217
CIRCLIP D.22 - COUNTERSHAFT
$
0.17
Recommended
Order Quantity:
1
Diagram
Position
28
F12320
O-RING NBR 2087
$
0.58
Recommended
Order Quantity:
1
Diagram
Position
3
F40215
PRIMARY SHAFT Z 13 6 FINS 300 4T
$
Recommended
Order Quantity:
1
Diagram
Position
4
F40218
5th A.P. Z20 6-LUG 300 4T GEAR
$
Recommended
Order Quantity:
1
Diagram
Position
5
F19524
NEEDLE BEARING 22 X 26 X 10
$
8.74
Recommended
Order Quantity:
5
Diagram
Position
6
48253
SPACER, GEAR BOX 250cc 17X30X1
$
1.22
Recommended
Order Quantity:
1
Diagram
Position
7
F49869
CIRCLIP SW 24 (EXTERNAL)
$
0.68
Recommended
Order Quantity:
5
Diagram
Position
8
F40217
GEAR 3/4a A.P.Z16/20 6 FINS 300 4T
$
64.56
Recommended
Order Quantity:
1
Diagram
Position
9
48258
SPACER GEAR INT.55 6S
$
2.51
Recommended
Order Quantity:
5
