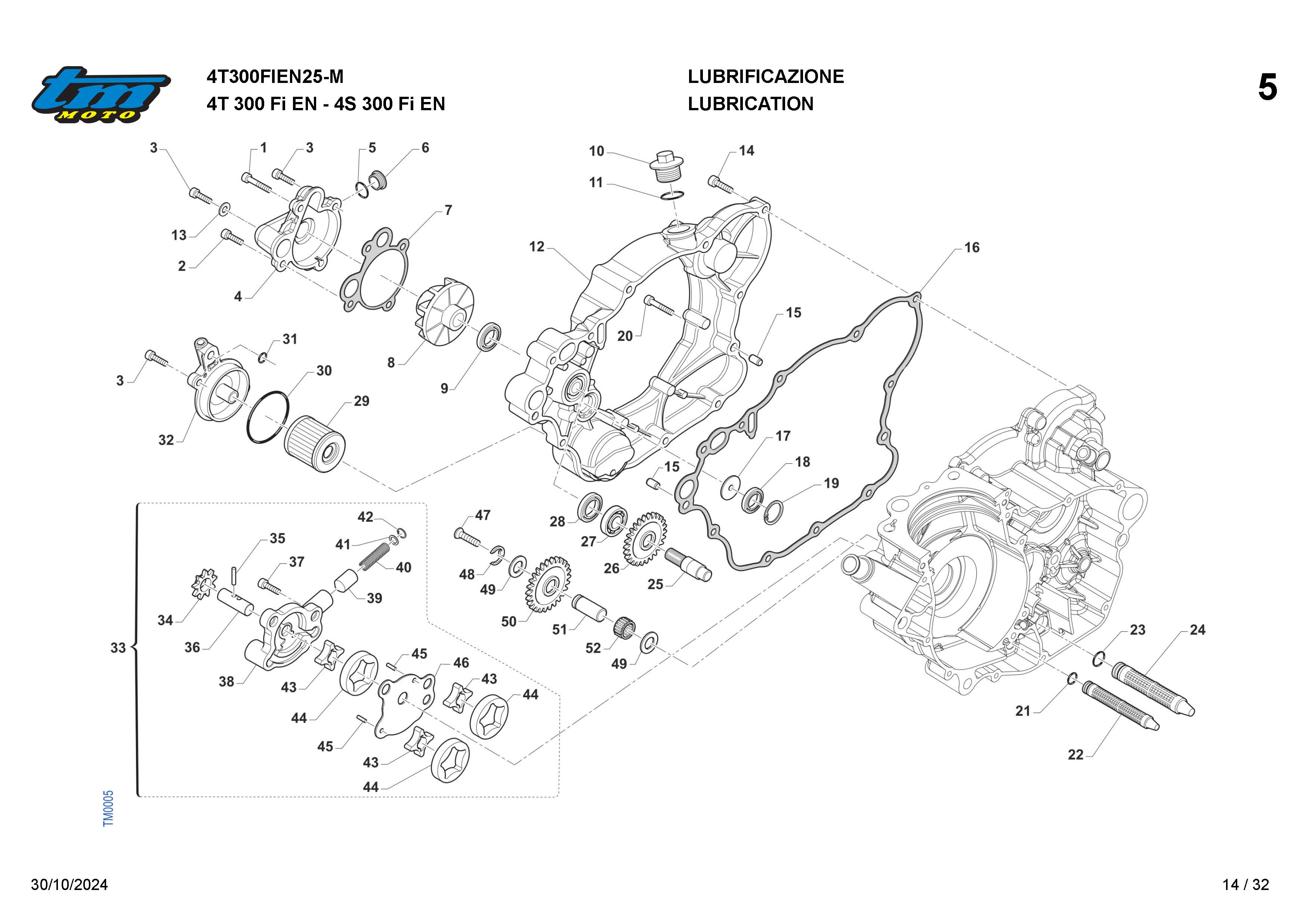

Lubrication

Diagram

4T300FIEN25

Diagram
Position
1
49575
BOLT TCEI 5X45
$
0.17
Recommended
Order Quantity:
1
Diagram
Position
10
F49925
OIL PLUG M20X1,5
$
13.28
Recommended
Order Quantity:
1
Diagram
Position
11
F49920
WASHER 20,4X26X1,5 ALUM.
$
0.35
Recommended
Order Quantity:
1
Diagram
Position
12
F30961
COVER, PRIMARY DRIVE 250N 11->
$
130.67
Recommended
Order Quantity:
1
Diagram
Position
13
49119
WASHER, 5 x 9 x 1.5 ALLUMINIUM
$
0.5
Recommended
Order Quantity:
1
Diagram
Position
14
49477
BOLT TCEI 5X25
$
0.71
Recommended
Order Quantity:
7
Diagram
Position
15
26041
DOWEL PIN 7 x 8 Hole 5,2
$
1.42
Recommended
Order Quantity:
2
Diagram
Position
16
F05828
GASKET, CLUTCH CASE 250Fi
$
10.81
Recommended
Order Quantity:
1
Diagram
Position
17
F32529
DISC OIL PUMP 250 F.S.
$
2.96
Recommended
Order Quantity:
1
Diagram
Position
18
F04390
OIL SEAL FAJ 14-22-5 HS
$
6.97
Recommended
Order Quantity:
1
Diagram
Position
19
F49913
CIRCLIP INT. 23
$
0.26
Recommended
Order Quantity:
1
Diagram
Position
2
49570
SCREW TCEI 5X50
$
0.2
Recommended
Order Quantity:
1
Diagram
Position
20
49478
BOLT TCEI 5X30
$
0.72
Recommended
Order Quantity:
1
Diagram
Position
21
F12325
O-RING
$
0.38
Recommended
Order Quantity:
1
Diagram
Position
22
F32532
FILTER, OIL, 250Fi
$
4.76
Recommended
Order Quantity:
1
Diagram
Position
23
F12343
O-RING
$
0.48
Recommended
Order Quantity:
1
Diagram
Position
24
F32555
FILTER OIL INLET
$
7.44
Recommended
Order Quantity:
1
Diagram
Position
25
F28658
SHAFT, WATER PUMP 250Fi
$
20.11
Recommended
Order Quantity:
1
Diagram
Position
26
F40112
GEAR COND. P.ACQUA Z 21 300 4T
$
23.24
Recommended
Order Quantity:
1
Diagram
Position
27
F03365
BEARING WATER PUMP 250/09
$
12.88
Recommended
Order Quantity:
1
Diagram
Position
28
F04363
OIL SEAL 8x22x5 (250F/09)
$
4.74
Recommended
Order Quantity:
1
Diagram
Position
29
F66510
OIL FILTER HF - 141
$
12.84
Recommended
Order Quantity:
1
Diagram
Position
3
49476
BOLT TCEI 5X20
$
0.68
Recommended
Order Quantity:
3
Diagram
Position
30
12094
O RING OIL FILTER COVER
$
0.31
Recommended
Order Quantity:
1
Diagram
Position
31
F12302
O-RING, 108 GEAR F.S.
$
0.17
Recommended
Order Quantity:
1
Diagram
Position
32
F30965
CAP, OIL FILTER 250Fi 11->
$
42.56
Recommended
Order Quantity:
1
Diagram
Position
33
F30068
OIL PUMP ASSY
$
219.55
Recommended
Order Quantity:
1
Diagram
Position
34
F40997
GEAR, OIL PUMP 250Fi 9 T
$
45.16
Recommended
Order Quantity:
1
Diagram
Position
35
F19513
PIN, PUMP GEAR 250 09->
$
0.31
Recommended
Order Quantity:
3
Diagram
Position
36
F28840
SHAFT, OIL PUMP
$
Recommended
Order Quantity:
1
Diagram
Position
37
49751
BOLT TCEI 5 X 22
$
0.08
Recommended
Order Quantity:
2
Diagram
Position
38
F30059
OIL PUMP BODY
$
Recommended
Order Quantity:
1
Diagram
Position
39
F32533
PISTON
$
4.3
Recommended
Order Quantity:
1
Diagram
Position
4
F30966
COVER, WATER PUMP 250Fi M.2011
$
67.08
Recommended
Order Quantity:
1
Diagram
Position
40
F16441
SPRING
$
3.23
Recommended
Order Quantity:
1
Diagram
Position
41
49600
WASHER 4
$
0.05
Recommended
Order Quantity:
1
Diagram
Position
42
49267
SEEGER
$
0.06
Recommended
Order Quantity:
1
Diagram
Position
43
F32577
ROTOR, OIL PUMP, INTERNAL
$
22.07
Recommended
Order Quantity:
3
Diagram
Position
44
F32578
ROTOR, OIL PUMP, EXTERNAL
$
22.07
Recommended
Order Quantity:
3
Diagram
Position
45
F19521
PIN 3 X 11
$
Recommended
Order Quantity:
2
Diagram
Position
46
F32574
PLATE
$
7.07
Recommended
Order Quantity:
1
Diagram
Position
47
49429
BOLT TSEI 4X35
$
0.1
Recommended
Order Quantity:
1
Diagram
Position
48
F49821
SEEGER INTER.GEAR OIL P.250 4S
$
0.41
Recommended
Order Quantity:
1
Diagram
Position
49
F19512
THRUST WASHER
$
0.97
Recommended
Order Quantity:
2
Diagram
Position
5
F12327
O-RING COVER WATER PUMP 250 4S
$
0.97
Recommended
Order Quantity:
1
Diagram
Position
50
F40909
GEAR, OIL PUMP
$
36.78
Recommended
Order Quantity:
1
Diagram
Position
51
F28665
SHAFT
$
14.09
Recommended
Order Quantity:
1
Diagram
Position
52
F19511
NEEDLE CAGE GEAR 250F 09->
$
8.8
Recommended
Order Quantity:
1
Diagram
Position
6
F49841
CAP, COVER WATER PUMP 250 4S
$
7.45
Recommended
Order Quantity:
1
Diagram
Position
7
F05833
GASKET, H2O COVER 250Fi
$
2.76
Recommended
Order Quantity:
1
Diagram
Position
8
F28679
IMPELLER, H2O PUMP 250Fi
$
17.62
Recommended
Order Quantity:
1
Diagram
Position
9
04017
OIL SEAL 8 X 22 X 7 TC
$
3.67
Recommended
Order Quantity:
1
